Examining the Nozzle Check Pattern

Examine the nozzle check pattern, and clean the print head if necessary.

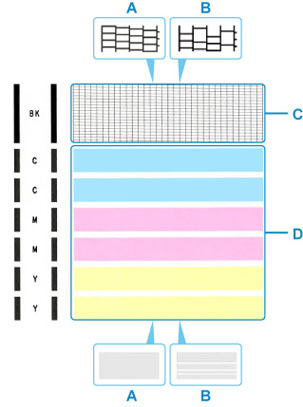

  1. Check if there are missing lines in the pattern C or horizontal streaks in the pattern D.

    • A: No missing lines/No horizontal streaks
    • B: Lines are missing/Horizontal streaks are present

  2. Select the pattern that is closer to the printed nozzle check pattern on the confirmation screen.

    For A (no missing lines or no horizontal streaks) in both the pattern C and pattern D:

    The cleaning is not required. Select All A, confirm the message, and then tap OK.

    The screen will return to the Maintenance screen.

    For B (lines are missing or horizontal streaks are present) in the pattern C or pattern D, or in both patterns:

    The cleaning is required. Select Also B, then select Yes on the cleaning confirmation screen.

    The printer starts cleaning the print head.

    If the pattern C or any color in the pattern D is not printed:

    (Example: Magenta pattern is not printed)

    The cleaning is required. Select Also B, then select Yes on the cleaning confirmation screen.

    The printer starts cleaning the print head.
